Precision Post-Weld Machining: The Final Word in Structural Integrity
Welding gets you close. Machining gets you there.
Even with the most advanced procedures and the most robust fixturing, the application of extreme heat to heavy steel plate causes movement. Shrinkage, pull, and thermal distortion are inherent to the process. For a bridge component, a mining shovel frame, or a locomotive undercarriage, “close” isn’t enough. When tolerances are measured in thousandths of an inch but the workpiece is measured in tons, the solution is post-weld machining.
FMP’s machining department is purpose-built for this exact requirement: taking massive, complex weldments and machining them to final specified dimensions with the precision that Tier-1 OEMs demand.
The Philosophy of Post-Weld Precision
Managing Thermal Distortion: When heavy welds are applied to a structural assembly, the Heat Affected Zone (HAZ) experiences localized expansion and contraction. Even when pre-weld geometry was perfect, the finished weldment will have moved. Post-weld machining effectively “wipes away” those thermal inaccuracies — restoring critical surfaces to drawing spec.
Critical Interfaces and Bearing Bores: The mounting flanges, hinge points, and bearing bores of a heavy assembly are where the “real world” happens. These surfaces must be perfectly planar and perfectly aligned. If a pair of bores on opposite sides of an 8-foot frame are out of alignment by even 0.010″, pins will bind and the assembly will fail. FMP’s horizontal boring mill machines these features in a single setup, ensuring absolute coaxiality and alignment.
Equipment

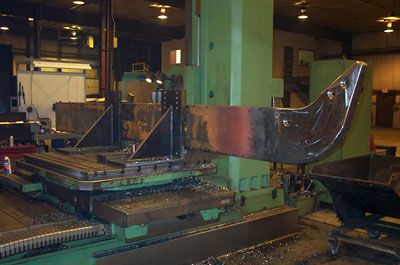

TOS WH105 Horizontal Boring Mill
The centerpiece of FMP’s machining department. Standard VMCs require the tool to approach from above, which limits their effectiveness on the deep, side-entry bores and massive dimensions typical of heavy equipment weldments.
The TOS WH105 is designed for scale:
- Massive work envelope — Accommodates the sheer size of mining and infrastructure weldments
- Rigidity for deep boring — The horizontal spindle provides stability for tight tolerances across deep reaches
- Stability — The workpiece remains stationary while the spindle moves, eliminating inaccuracy from handling a heavy mass during the cut
Fadal (2)
- X = 60”
- Y = 30”
- Z = 30”
- Has 4th axis rotary indexer.
- 4000lb load cap.
OKK PCV-55
- X = 40”
- Y = 22”
- Z = 20”
- 30hp CAT50 Spindle
- 1500lb load cap.
FPT LEM5/SLH Horizontal Machining Center
- X = 98.5”
- Y = 65”
- Z = 40”
- 30hp NMTB50 Spindle
- 12,000lb load cap.
Magnamill HBM4 Horizontal Boring Mill
- X = 86.6”
- Y = 63”
- Z = 63”
- W = 21.65”
- A = 360°
- 4.3” 45hp NMTB50 Spindle
- 11000lb load cap.

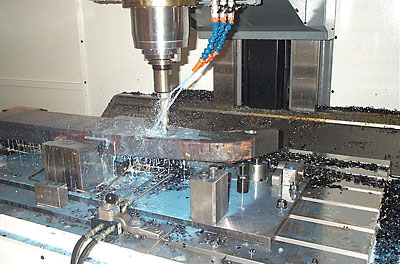

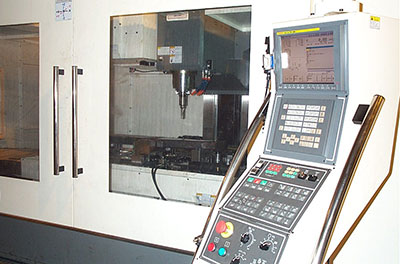

Viper VMC Machining Centers

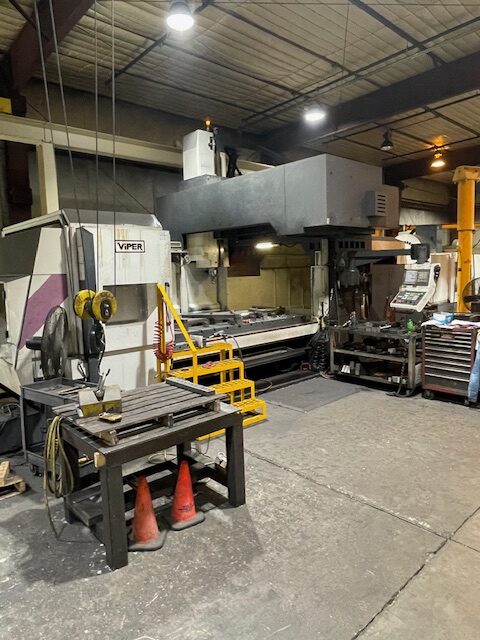

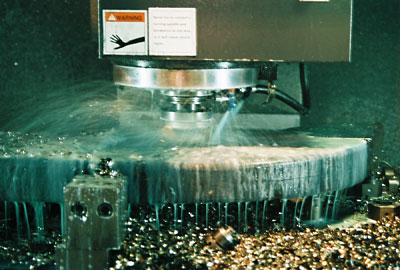

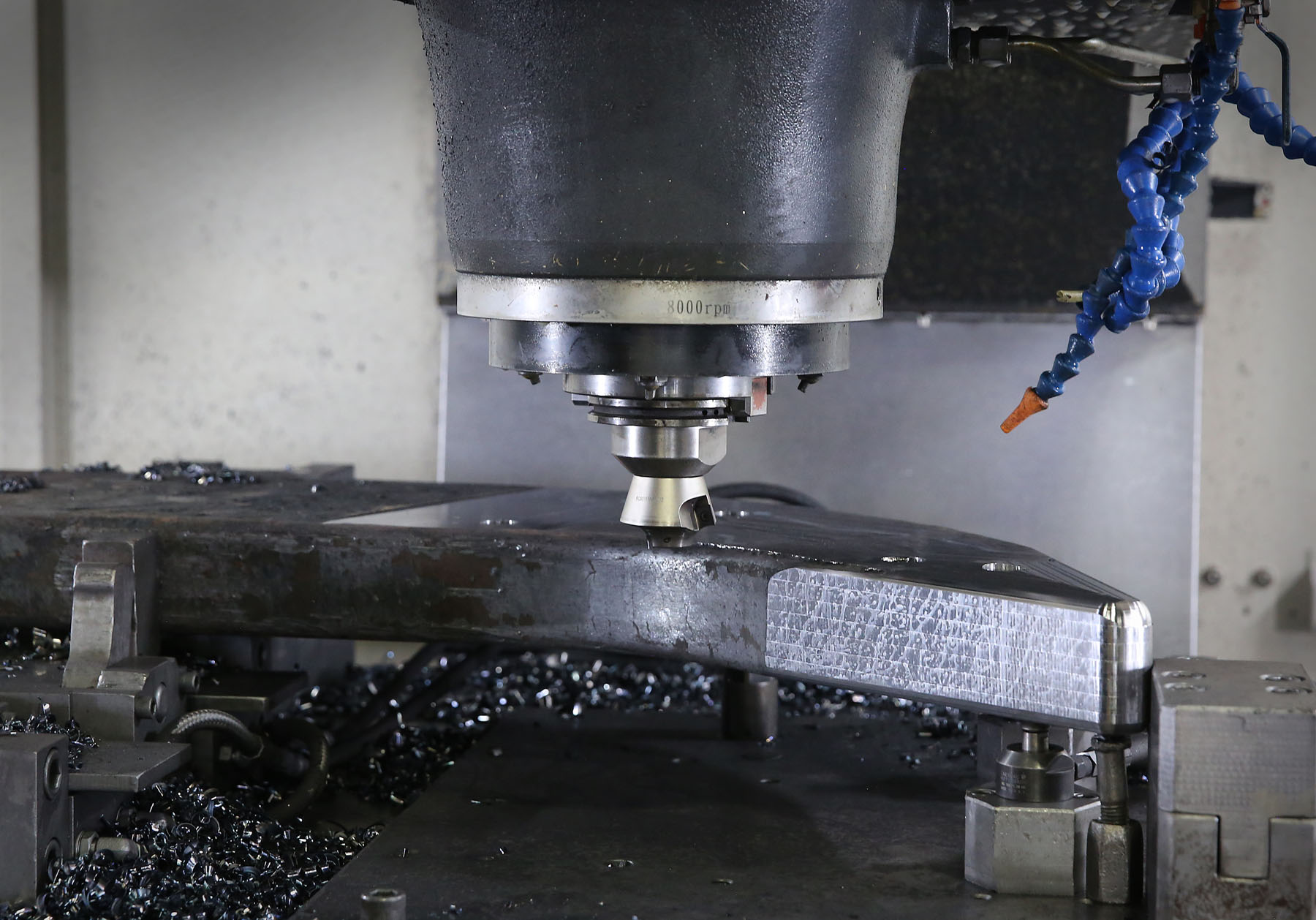

The Viper VMCs handle the high-speed detail work: mounting patterns, tapped holes, precision facing for gasket seats and mating flanges. Optimized for throughput — rapidly moving from one part to the next while maintaining the precision that assembly lines demand.
Mighty Viper VMC 2200 (2)
- X = 86.6”
- Y = 35.4”
- Z = 35.4”
- 35hp CAT50 Spindles
- 8000lb load cap.
Mighty Viper VMC 2100 (2)
- X = 84”
- Y = 32”
- Z = 32”
- 35hp CAT50 Spindles
- 6600lb load cap.
Mighty Viper VMC1100
- X = 42”
- Y = 25”
- Z = 25”
- 30hp CAT50 Spindle
- 2600lb load cap.

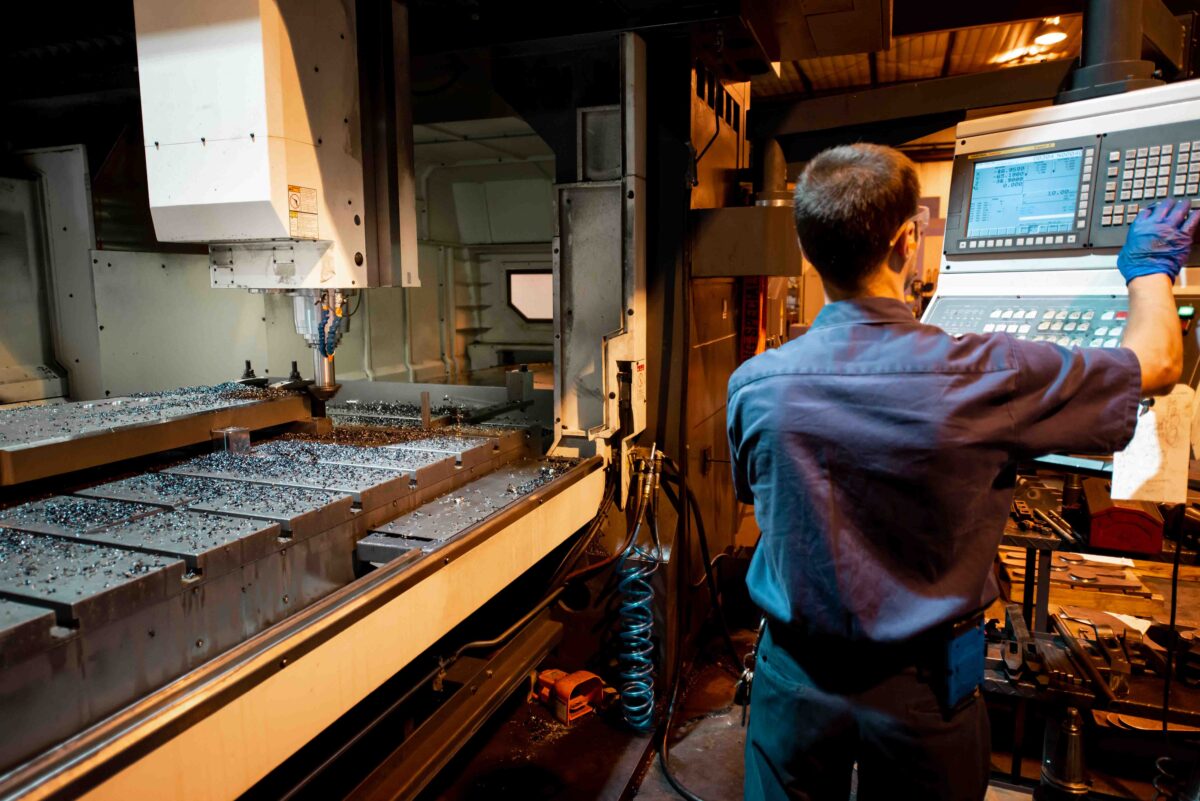

Mighty Viper SW-323 Bridge Mill
- X = 118”
- Y = 72”
- Z = 30”
- 45hp CAT50 Spindle
- 24000lb load cap.
Mighty Viper AG3100
- X = 120”
- Y = 40”
- Z = 43”
- 35hp CAT50 Spindle
- 8800lb load cap.
The Integrated Advantage: One Building, One Standard
The greatest risk in heavy manufacturing is the “vendor hop”:
- Shop A cuts the plate
- Shop B forms it
- Shop C welds it
- Shop D machines it
If the bore is off-center at Shop D, whose fault is it? Shop A’s cut? Shop C’s weld distortion? When the supply chain is fragmented, accountability is lost and lead times balloon.
FMP eliminates the hop. The welder who joins the assembly is ten feet from the machinist who finishes it. If the CWI identifies a potential distortion issue, they walk twenty feet to discuss it. Procedures adjust in real time. The part gets machined right because it was welded right — and both operations answer to the same ISO 9001:2015 quality system.
Applications
- Mining Equipment — Main pivot points and bearing bores on shovel dippers and handles
- Bridge & Infrastructure — Precision-facing bearing plates for bridge girders (AWS D1.5)
- Rail & Locomotive — Critical mounting surfaces on heavy under-frames and bolster assemblies
- Construction — Boring and facing heavy-duty boom pivots for large-scale cranes
- General Industrial — Any weldment requiring post-fabrication dimensional precision
